Digital Air Meter

Digital concrete Air meter

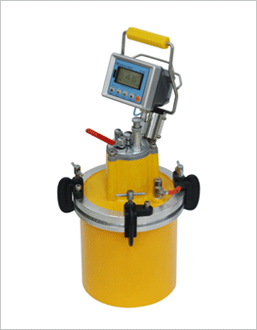

Daeyoon Digital Air Meter (DY-300)
Function / Features

- Automatic control of air pumping and IP line by pushing one button.
- No individual discrepancy due to no manual work.
- No pump and air control valve trouble.
- No mechanical tolerance problem of gauge due to digital display.
- Easy to solve the tolerance issue of bowl¡¯s volume change due to simple re-correction.
- Can be changed the bowl. (Also can be used after re-correction)
- Easy to correct. But only 2 points (ZERO/SPAN) can be corrected
- Auto manual for Pumping and exhaust working is possible.
- Can select Time / Temp Display / Temp Compensation in display.
- Can select air contents display (1st or 2nd decimal point)
- Unit mass inference.
- Printer. (Optional)

Specifications


- MODEL : DY-300
- Measuring Method : Digital Measuring System by Micom (WATER & Waterless select measurement)
- Air Pressure sensor : Ceramic pressure cell Max 200.0 kPa,¡¾0.1 kPa
- Air Content Measuring Range : 0.0 % ~ 9.9 % (20 ¡É ¡¾0.1%)
                                                            0.00 % ~ 9.99 % (20 ¡É ¡¾0.01%)
- Unit Mass Inference Method : Tight, Simple Method of unit mass inference method by Air Meter Method in Civil Laboratory
- Operating Temp/Humidity : 0.0 ¡É ~ 50.0 ¡É / 80 % RH (Relative Humidity)
- Temperature Compensation : ATC (can select existence nonexistence)
- Memory : Memory recalling holds 30 Readings
- Display : Graphic Dot LCD (128*64)
- Communication : IR Infrared Ray (9600 bps, 8Data Bit, No Parity, 1Stop Bit)
- Power Supply : Adapter,Rechargable: DC12V / 500mA
- Option : Printer (Data output)
