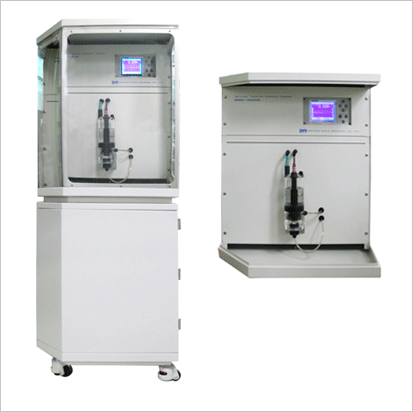

- Name : On-Line Chloride Analyzer
- Model : DWA-3000S-CL
- Measurement Method : Potentiometry (By chloride ISEs)
- Range : Cl- : 0.0000 % ~ 7.0000 %
- NaCl : 0.0000 % ~ 10.0000 %
- Accuracy : กพ 5 % of F.S
- Power : AC 110/220V 50/60Hz
- Display : 160 * 128 Graphic LCD & back light
- Operating condition : Temp: 0 to 40 กษ, Humidity: max 90%
- Relay output : 4 relay contact-(HH,H,L,LL)
- Signal Output : Isolated 4~20 mA DC & RS-232C
- Temperature compensation : MTC/ATC(PT1000)
- Calibration : 2 point calibration(Auto/Manual)
- Enclosure Size : 640(W) X 770(H) X 622(D) mm |
